Thread Size x Pitch: M4*0.7

Type: Stainless Steel

Type: F

Thread Code: M4

Shank Code: 1

A Max: 1.53

Min Sheet Thickness: 1.53-2.3

Hole Size In Sheet+.080: 7.37

C Max: 7.35

H Nom: 8.0

Min Dist Hole C/L To Edge: 7.2

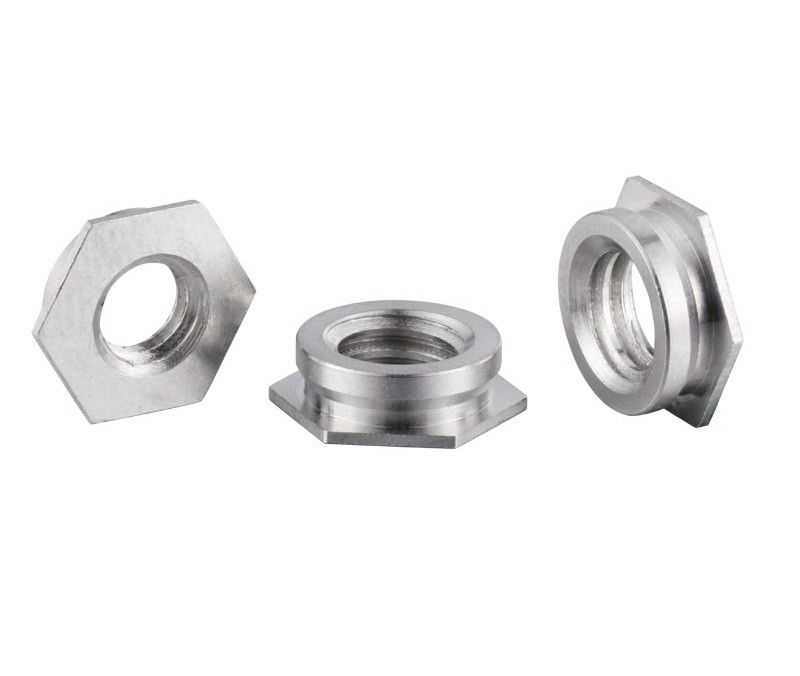

Flush nuts are called in many ways. According to their mode of action, they are called inlaid nuts and embedded nuts. The appearance is similar to a truncated clinch nuts. The two sides are connected, and when used on the panel, both sides of the panel can be kept phase Flat, so it is also called flush nuts and the method of action is aslo pressure riveting.

This product meets the compliance specifications listed below. Click the button to download a specification document.

Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
