Self-clinching blind nuts
Self-clinching blind nut is also called sealed clinch nut column or blind nuts column. Self-clinching blind nut has an internal thread with a blind hole. THE head and the end are equivalent to the S-shaped clinch nut, and an effective inner nut is formed on the plate. The blind hole deign of the blind nut can effectively prevent foreign matter form entering, and the rod of the product can be used as a positioning rod for other parts. The installation method combines the characteristicx of the clinch nut and the clinch standoff installation. The self-clinching blind nut is used in the working environment where the bottom end needs to be sealed.
- Specifications
- Description
- Compliance
- Available
Thread Size x Pitch: M6*1
Type: Carbon Steel
Thread Code: M6
Shank Code: 2
A Max: 2.21
Sheet Thickness: 2.3
Hole Size In Sheet+.080: 8.75
B Max: 7.8
C Max: 8.72
E±0.25: 11.1
F Min.: 7.8
L Max.: 12.7
T±0.25: 14.3
Min Dist Hole C/L To Edge: 8.6
-

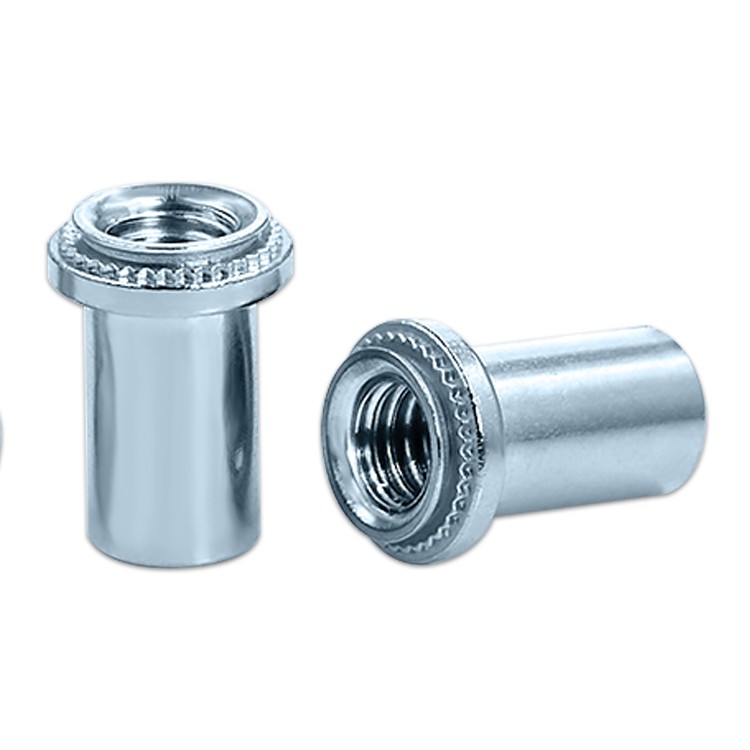

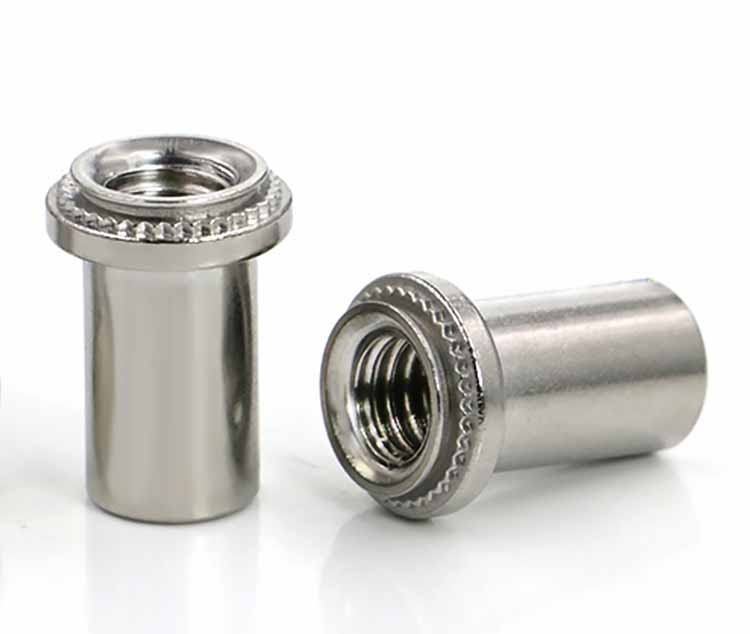

The self-clinching blind nuts are divided into B type and BS type. The material of type B is carbon steel, and the surface treatment defaults to blue and white zinc. BS is made of stainless steel, and the surface is passivated by default in the natural color of stainless steel.
-
This product meets the compliance specifications listed below. Click the button to download a specification document.
-
Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
