Thread Size: M6

Type: PF15

Thread Code: M6

Shank Code: 3

A±0.1: 1.8

Min Sheet Thick: 1.8

Hole Size In Sheet +0.08:8.2

 C Max.: 8.17

B±0.1: 0.4

E±0.25: 14.7

G±0.64: 12.6

T1±0.2: 25.3

T2 Nom.: 19.3

Driver Size: #3

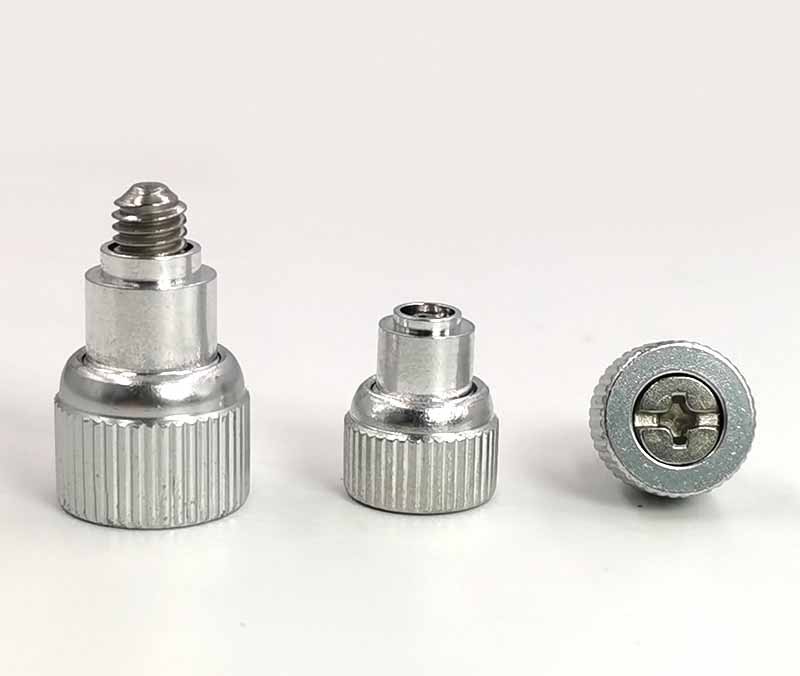

Captive screw is understood literally as a screw that is loose and will not fall off. Also known as non-loosable, spring-loaded screw, and non-detachable screw. It is pressure riveting or expansion riveting on the mounting plate, which is mostly used in various industries such as power supply technology, switches, cabinets and cabinets.

This product meets the compliance specifications listed below. Click the button to download a specification document.

Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
