Self-clinching Panel Fasteners

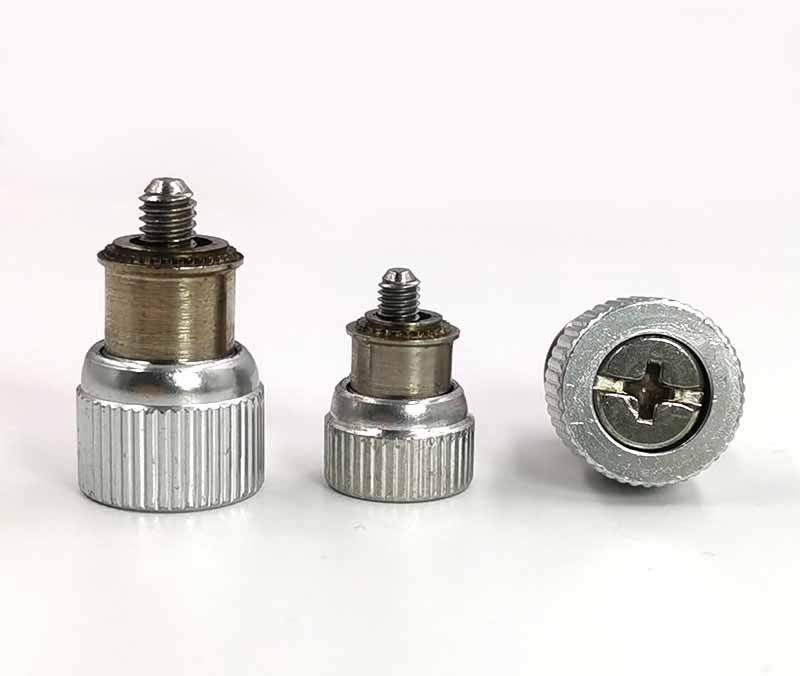

Captive screw is understood literally as a screw that is loose and will not fall off. Also known as non-loosable, spring-loaded screw, and non-detachable screw. It is pressure riveting or expansion riveting on the mounting plate, which is mostly used in various industries such as power supply technology, switches, cabinets and cabinets.
- Specifications
- Description
- Compliance
- Available
Thread Size: M4
Type: PF11 ( Knurled)/ PF12( Smooth Cap)
Thread Code: M4
A ( Shank Max): 0.92
Min Sheet Thick: 0.92
Hole Size In Sheet +0.08: 7.92
C Max: 7.9
E±0.25: 13.06
G±0.64: 5.84
P±0.64: 0
T1 Nom: 11.43
T2 Nom: 16.26
Driver Size: #2
Min. Dist. Hole C/L To Edge: 8.38
- Captive screw is understood literally as a screw that is loose and will not fall off. Also known as non-loosable, spring-loaded screw, and non-detachable screw. It is pressure riveting or expansion riveting on the mounting plate, which is mostly used in various industries such as power supply technology, switches, cabinets and cabinets.
-
This product meets the compliance specifications listed below. Click the button to download a specification document.
-
Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
