Self-clinching Panel Fasteners

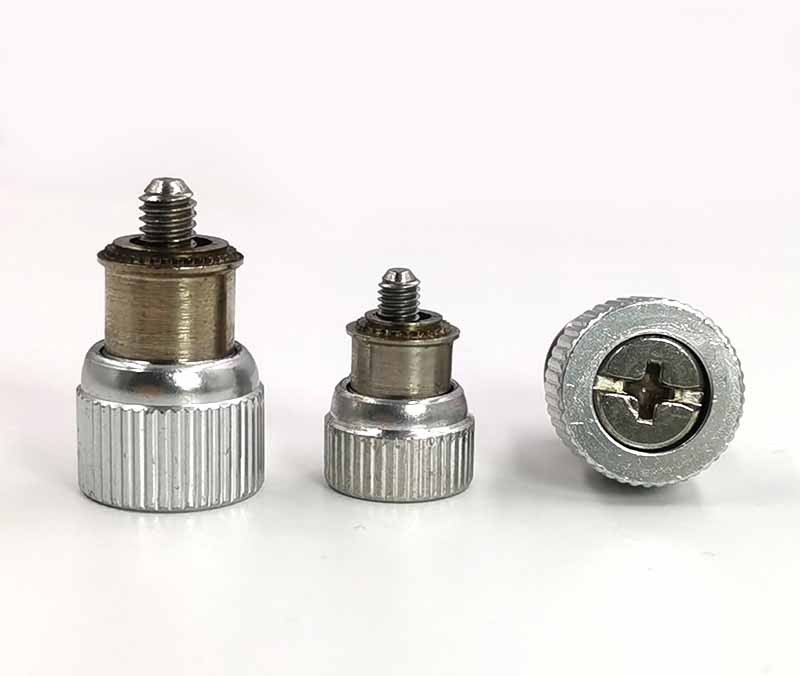

Captive screw is understood literally as a screw that is loose and will not fall off. Also known as non-loosable, spring-loaded screw, and non-detachable screw. It is pressure riveting or expansion riveting on the mounting plate, which is mostly used in various industries such as power supply technology, switches, cabinets and cabinets.
- Specifications
- Description
- Compliance
- Available
Thread Size: M3
Type: PF11 ( Knurled)/ PF12( Smooth Cap)
Thread Code: M3
A ( Shank Max): 0.92
Min Sheet Thick: 0.92
Hole Size In Sheet +0.08: 5.56
C Max: 5.54
E±0.25: 10.59
G±0.64: 7.37
P±0.64: 3.05
T1 Nom: 7.87
T2 Nom: 11.43
Driver Size: #1
Min. Dist. Hole C/L To Edge: 7.11
- Captive screw is understood literally as a screw that is loose and will not fall off. Also known as non-loosable, spring-loaded screw, and non-detachable screw. It is pressure riveting or expansion riveting on the mounting plate, which is mostly used in various industries such as power supply technology, switches, cabinets and cabinets.
