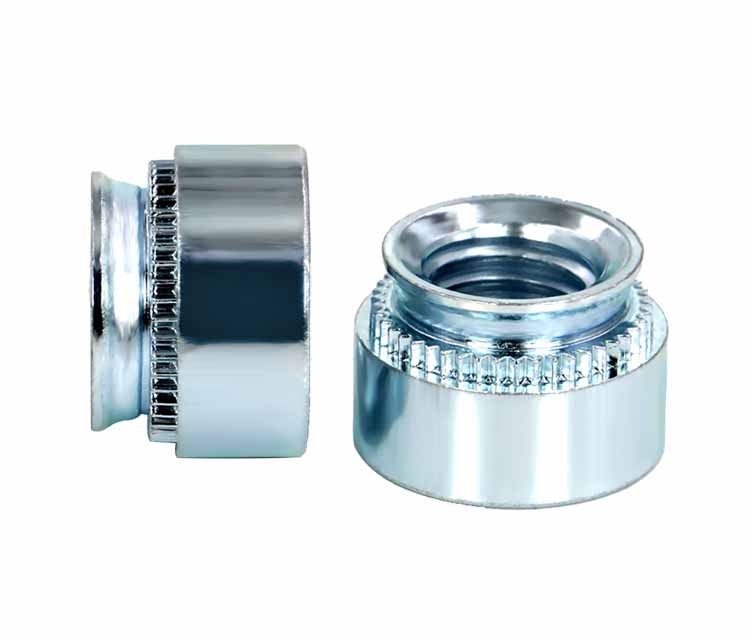

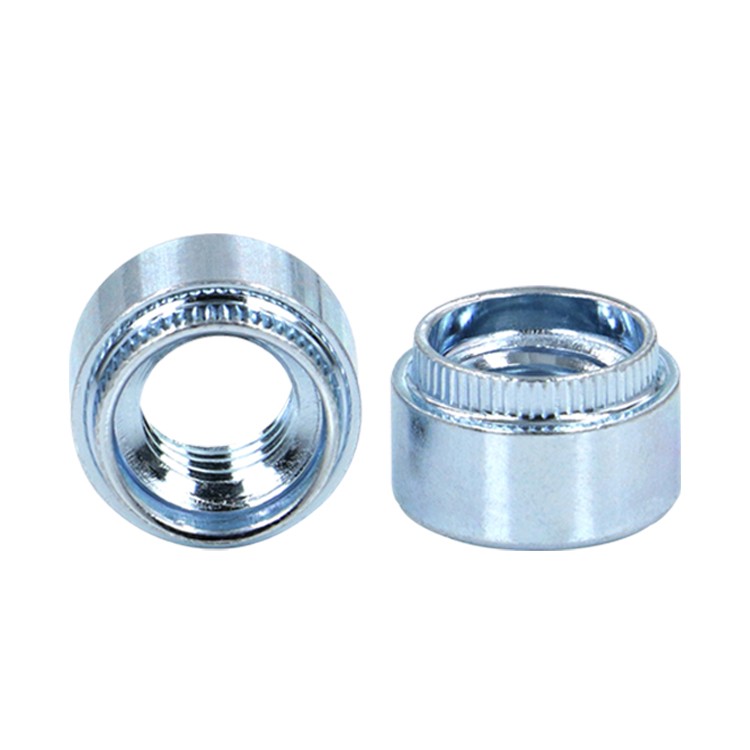

Flare-in nut is a kind of fastener used in sheet metal, chassis and cabinet. The flare-in nut has two shapes: one is hexagonal, which is represented by NZ NZS; the other is cylindrical, whihc is represented by Z ZS.

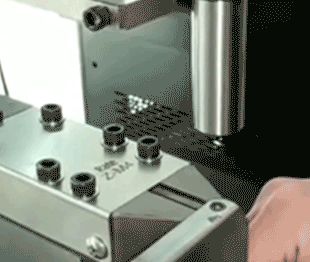

The riveting process is relatively simple and the connection strength is low. It is usually used in situation where the height of the fastener is limited and the torque is not large.
- Specifications
- Description
- Compliance
- Available
Thread Size: M3
Material: Carton Steel
Shank Code: 1.5
A Max: 1.5mm
Min Sheet Thickness: 1.5mm
Hole Size In Sheet +0.8: 5mm
C Max: 4.98mm
E ±0.25: 7mm
T ±0.25: 3mm
Flare-in nut is a kind of fastener used in sheet metal, chassis and cabinet. The flare-in nut has two shapes: one is hexagonal, which is represented by NZ NZS; the other is cylindrical, whihc is represented by Z ZS.
The riveting process is relatively simple and the connection strength is low. It is usually used in situation where the height of the fastener is limited and the torque is not large.
-
This product meets the compliance specifications listed below. Click the button to download a specification document.
-
Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions
