Thread Size: M3

Material: Carton Steel

Shank Code: 1.2

A Max: 1.2mm

Min Sheet Thickness: 1.2mm

Hole Size In Sheet +0.8: 5mm

C Max: 4.98mm

E ±0.25: 7mm

T ±0.25: 3mm

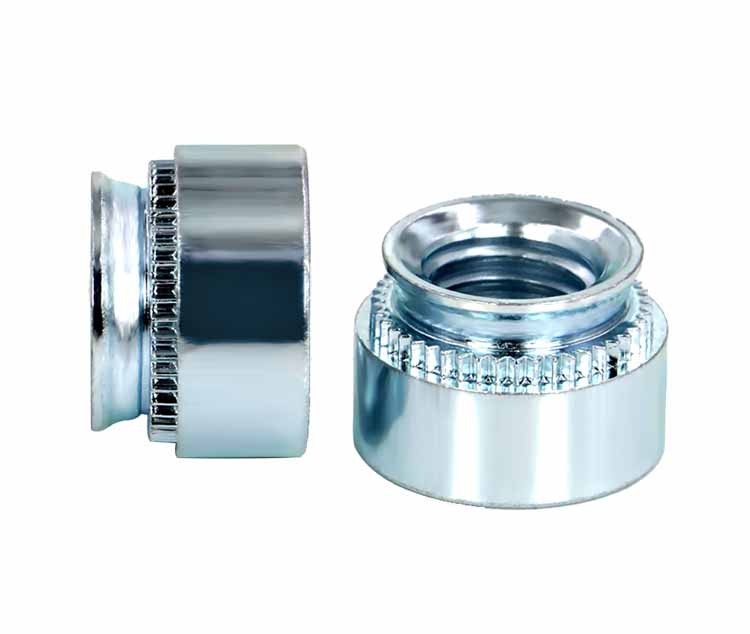

Flare-in nuts is a kind of fastener used in sheet metal, chassis and cabinet. The flare-in nut has two shapes: one is hexagonal, which is represented by NZ NZS; the other is cylindrical, which is represented by Z ZS.

The riveting process is relatively simple and the connection strength is low. It is usually used in situations where the height of the fastener is limited and the torque is not large.

This product meets the compliance specifications listed below. Click the button to download a specification document.

Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
