Pin Diameter P±0.05: 5

Type: TPS

Pin Diameter Code: 5mm

Length Code ±0.4: 20

Min. Sheet Thickness: 1

Hole Size In Sheet +0.08: 5.5

D±0.15: 3.53

H±0.4: 7.19

S Max. (1): 2.29

Min. Dist. Hole C/LTo Edge: 7.6

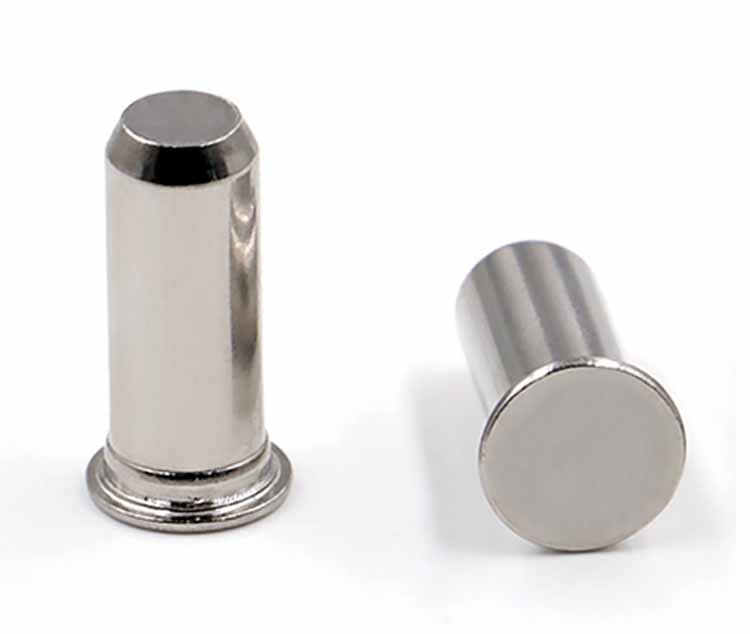

The self-clinching pin is widely used in many aspects such as positioning device, rotation center and linear alignment. The end chamfer makes it easy to install.
