Pin Diameter P±0.05: 3

Type: TPS

Pin Diameter Code: 3mm

Length Code ±0.4: 10

Min. Sheet Thickness: 1

Hole Size In Sheet +0.08: 3.5

D±0.15: 2.05

H±0.4: 5.2

S Max. (1): 2.29

Min. Dist. Hole C/LTo Edge: 6.4

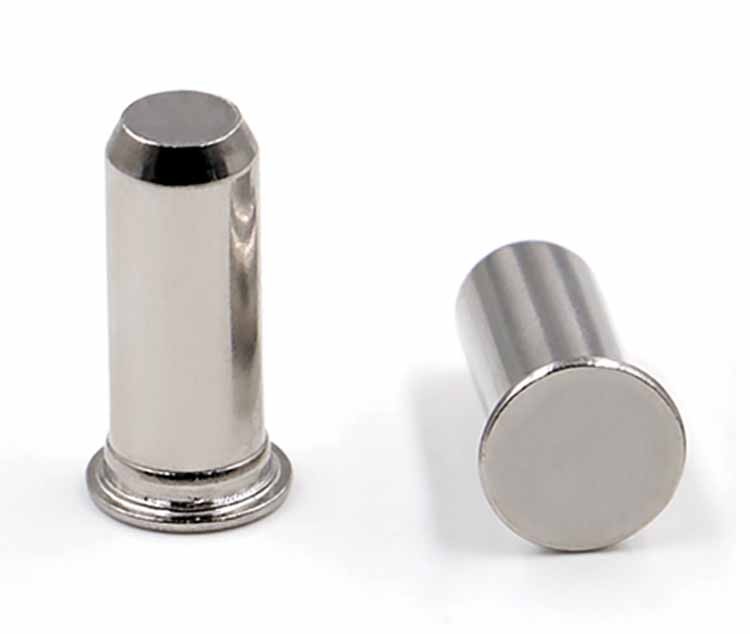

The self-clinching pin is widely used in many aspects such as positioning device, rotation center and linear alignment. The end chamfer makes it easy to install.

This product meets the compliance specifications listed below. Click the button to download a specification document.

Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
