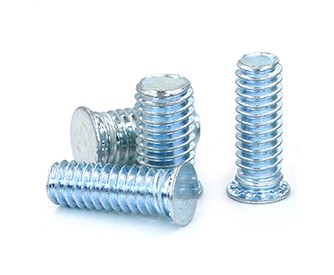

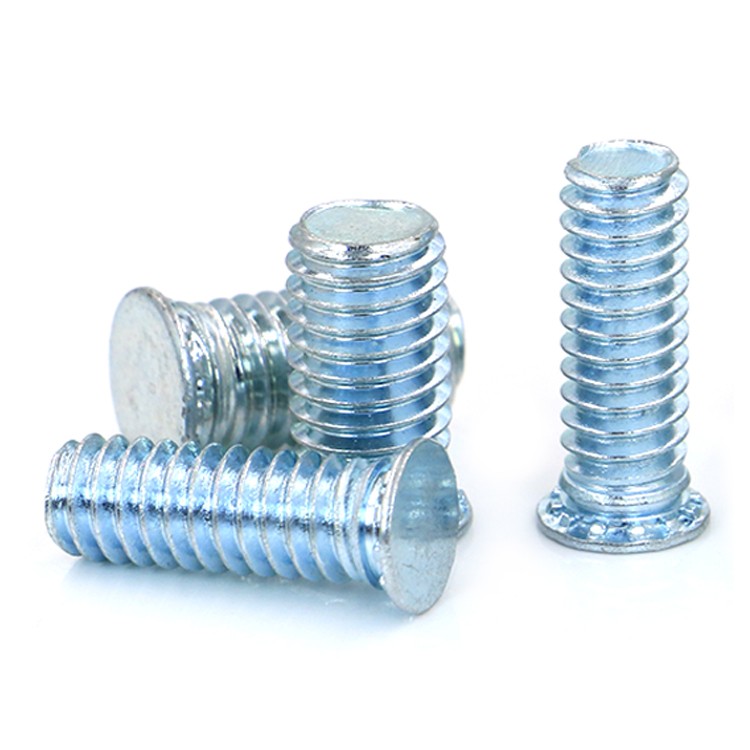

During use, a small hole needs to be made in the thin plate, the self clinching stud is put into the hole. When the riveting equipment is used to press the head in parallel and evenly, because the head of the self clinching stud is embossed with teeth, the thin plate deforms around the pressure riveting screw and bites with the tooth pattern, thereby forming a firm external thread.
- Specifications
- Description
- Compliance
- Available
Material: Steel
Finish: Zinc Plated
Thread Code: M4
Length: 25mm
Head Size: 5.9mm
Min. Sheet Thickness:
1mm
Hole Size in Sheet: 4mm
- The application advantages of clinching studs are as follows:
1. Convenient assembly, just simple pressure riveting.
2. High torque resistance.
3. The surface processing is non-hazardous and suitable for coating materials.
4. The specifications are serialized to meet various design requirements.
- This product meets the compliance specifications listed below. Click the button to download a specification document.
- Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
