Stainless Steel Thro-hole Threaded Standoffs
Your location:Home > Stainless Steel Thro-hole Threaded Standoffs
Stainless Steel Thro-hole Threaded Standoffs

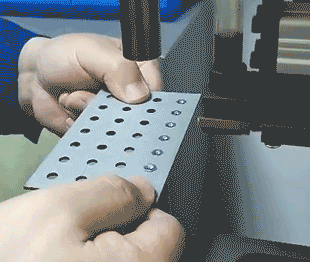

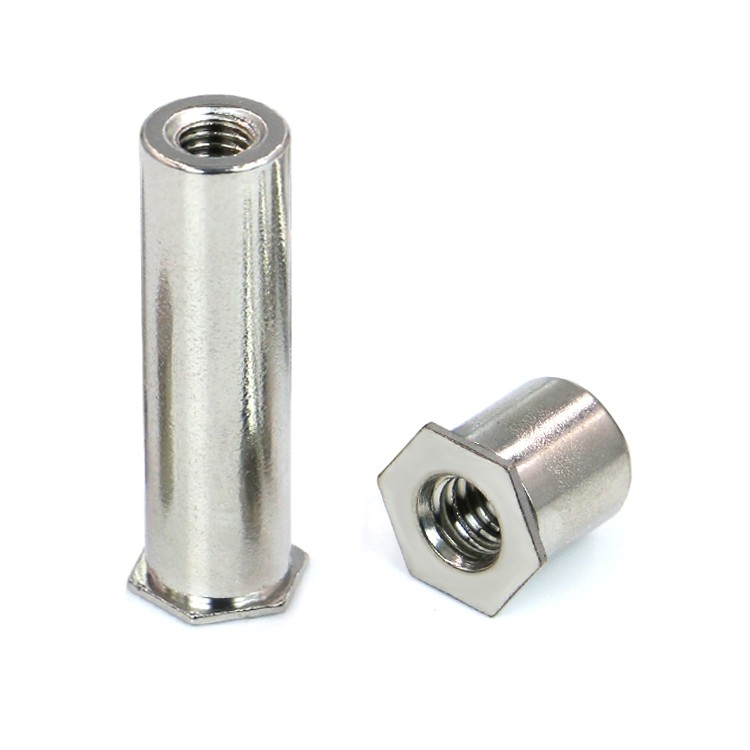

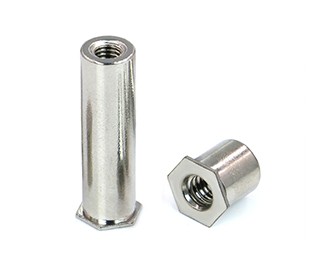

Thro-hole Threaded Self-clinching standoff is a kind of fastener used in sheet metal, chassis and cabinet. One end of the shape of the self clinching standoff is hexagonal, and the other end is cylindrical. And there is an undercut groove between the hexagonal side and the cylindrical shape, and the inner shape is internal thread.Thro-hole Self-clinching standoffs let us don’t need secondary operations, and provide fast and simple by using standard machine such as hydraulic, or pneumatic rivet machine.
- Specifications
- Description
- Compliance
- Available
Material: Stainless
Steel 300
Finish: Passivated
Thread Code: M6
Length: 9mm
Head Size: 10.0mm
Min. Sheet Thickness:
1.3mm
Hole Size In Sheet : 8.75mm
Outside Diameter: 8.72mm
Utilising a
hexagon head and a special proven clinch feature, this fastener has excellent
torque-out, pull-through and push-out characteristics whilst providing a flush
finish on the underside of the panel, meaning that minimal surface finishing is
required after installation.
This product
meets the compliance specifications listed below. Click the button to download
a specification document.
Luoshengdun offers modifications to standard products. Provide custom-made services, provide you
fastener solutions.
