Stainless Steel Thro-hole Threaded Standoffs
Your location:Home > Stainless Steel Thro-hole Threaded Standoffs

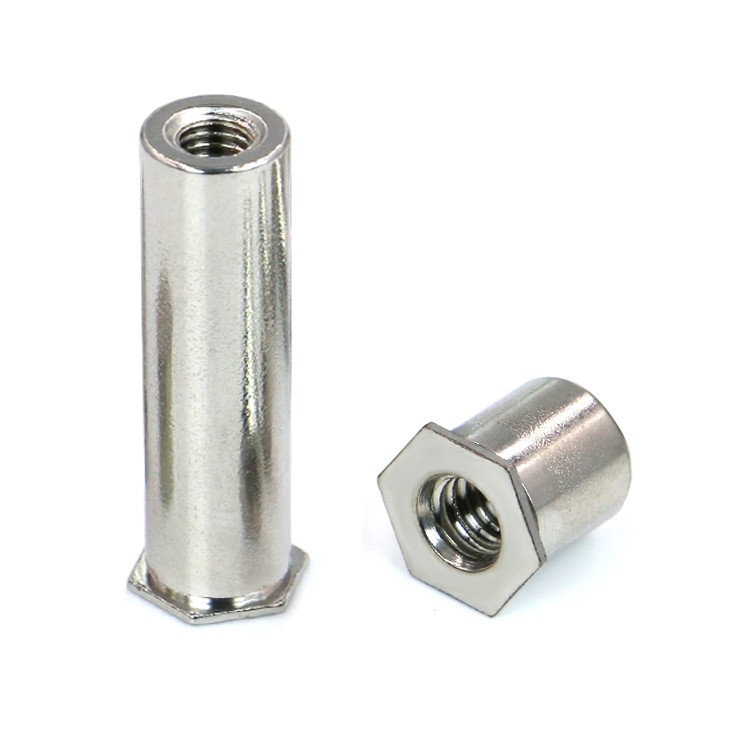

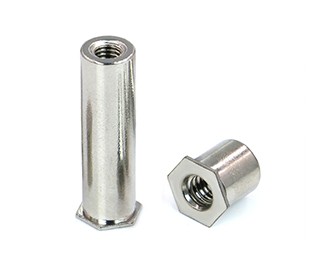

Stainless Steel Thro-hole Threaded Standoffs
Its materials are generally stainless steel, carbon steel, and copper. Copper material can be divided into H59 copper and H62 copper. Stainless steel materials can be divided into SUS304 and SUS303 or SUS302.During use, a small hole needs to be made in the thin plate, the self clinching stud is put into the hole. When the riveting equipment is used to press the head in parallel and evenly, because the head of the self clinching stud is embossed with teeth, the thin plate deforms around the pressure riveting screw and bites with the tooth pattern, thereby forming a firm external thread.
- Specifications
- Description
- Compliance
- Available
Material: Stainless
Steel 300
Finish: Passivated
Thread Code: M6
Length: 6mm
Head Size: 10.0mm
Min. Sheet Thickness:
1.3mm
Hole Size In Sheet : 8.75mm
Outside Diameter: 8.72mm
Utilising a
hexagon head and a special proven clinch feature, this fastener has excellent
torque-out, pull-through and push-out characteristics whilst providing a flush
finish on the underside of the panel, meaning that minimal surface finishing is
required after installation.
This product
meets the compliance specifications listed below. Click the button to download
a specification document.
Luoshengdun offers modifications to standard products. Provide custom-made services, provide you
fastener solutions.
