Thro-hole Threaded Standoffs
Your location:Home > Thro-hole Threaded Standoffs
Thro-hole Threaded Standoffs

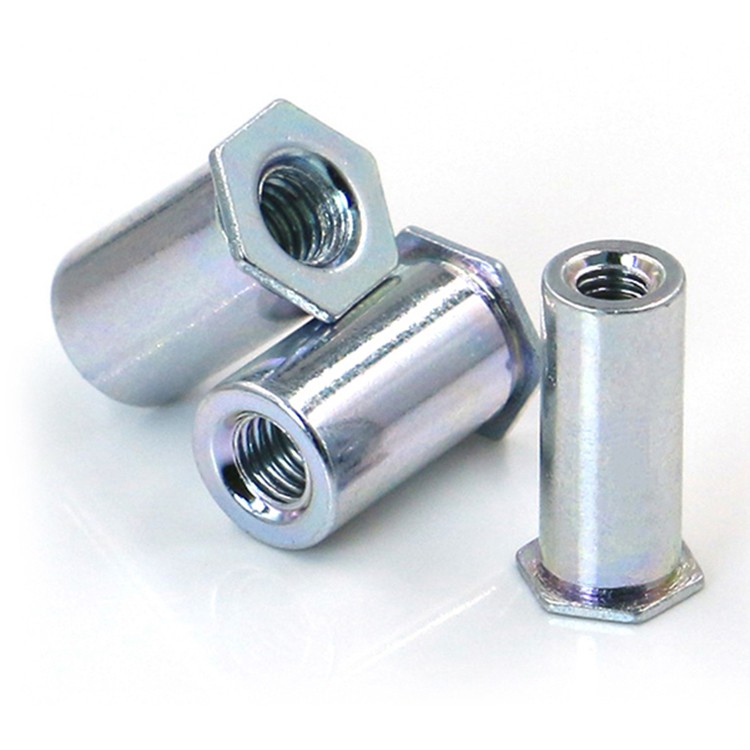

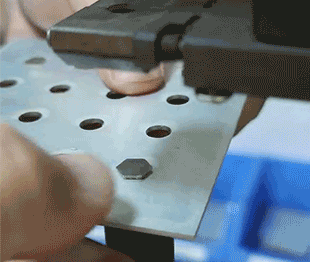

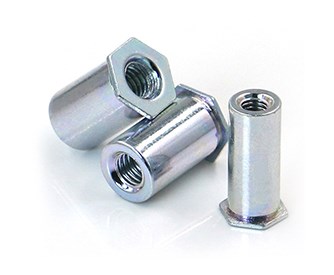

Thro-hole Threaded Self-clinching standoff is a kind of fastener used in sheet metal, chassis and cabinet. One end of the shape of the self clinching standoff is hexagonal, and the other end is cylindrical. And there is an undercut groove between the hexagonal side and the cylindrical shape, and the inner shape is internal thread.Thro-hole Self-clinching standoffs let us don’t need secondary operations, and provide fast and simple by using standard machine such as hydraulic, or pneumatic rivet machine.
- Specifications
- Description
- Compliance
- Available
Material: Steel
Finish: Plating
Color: Zinc Blue
Thread Code: M4
Length: 18mm
Head Size: 7.0mm
Min. Sheet Thickness: 1.3mm
Hole Size In Sheet : 6.0mm
Outside Diameter: 5.82~5.95mm
Utilising a hexagon head and a special proven clinch feature, this fastener has excellent torque-out, pull-through and push-out characteristics whilst providing a flush finish on the underside of the panel, meaning that minimal surface finishing is required after installation.
This product meets the compliance specifications listed below. Click the button to download a specification document.
Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
