Self-clinching Blind Standoffs

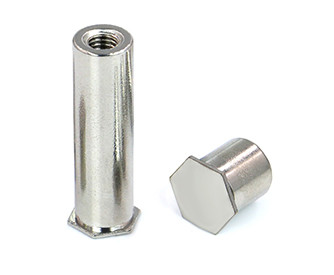

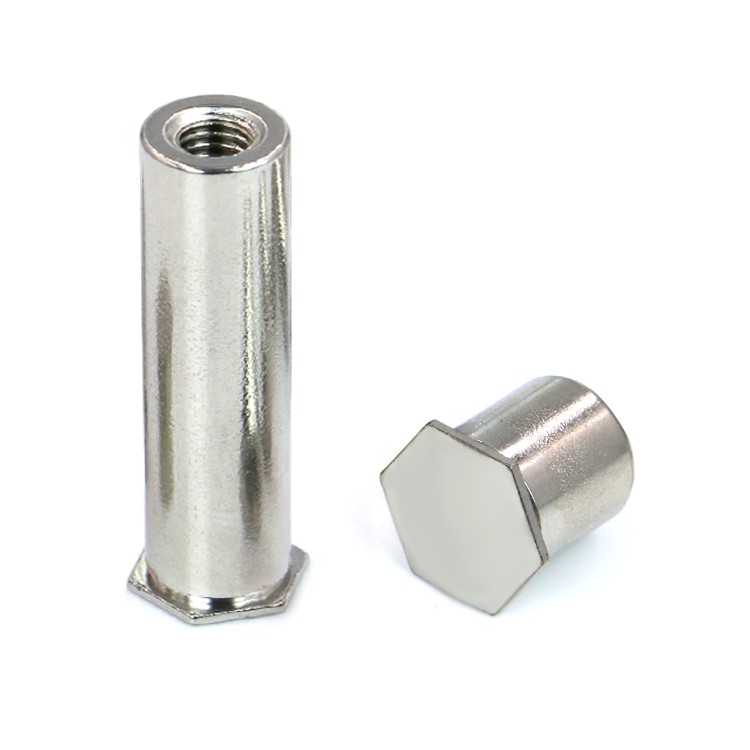

Self-clinching blind standoff is a kind of fastener used in sheet metal, chassis and cabinet. One end of the shape of the self clinching standoff is hexagonal, and the other end is cylindrical. And there is an undercut groove between the hexagonal side and the cylindrical shape, and the inner shape is internal thread.

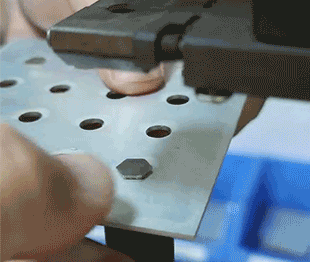

Self-clinching blind standoffs let us don’t need secondary operations, and provide fast and simple by using standard machine such as hydraulic, or pneumatic rivet machine.

Specifications
Description
Compliance
Available

Material: Stainless Steel

Finish: Passivated

Thread Code: M6

Length: 8mm

Head Size: 10mm

Min. Sheet Thickness: 1.3mm

Hole Size In Sheet : 8.75mm

Outside Diameter: 8.72mm

Utilising a hexagon head and a special proven clinch feature, this fastener has excellent torque-out, pull-through and push-out characteristics whilst providing a flush finish on the underside of the panel, meaning that minimal surface finishing is required after installation.

This product meets the compliance specifications listed below. Click the button to download a specification document.

Download

Certificate

Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
