Material: Steel

Finish: Plating

Color: Zinc Blue

Thread Code: M3

Length: 22mm

Head Size: 4.75mm

Min. Sheet Thickness: 1.02mm

Hole Size In Sheet +0.08: 4.2mm

Outside Diameter: 4.06～4.19mm

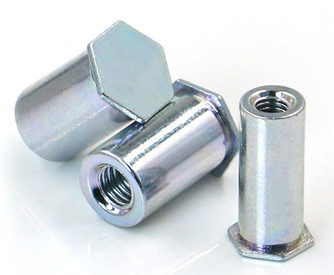

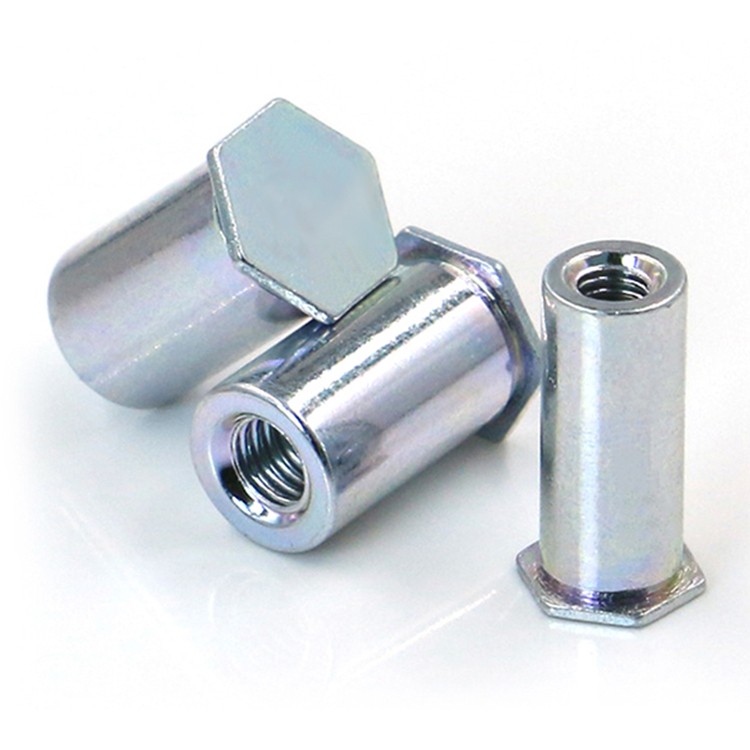

Utilising a hexagon head and a special proven clinch feature, this fastener has excellent torque-out, pull-through and push-out characteristics whilst providing a flush finish on the underside of the panel, meaning that minimal surface finishing is required after installation.

This product meets the compliance specifications listed below. Click the button to download a specification document.

Luoshengdun offers modifications to standard products. Provide custom-made services, provide you fastener solutions.
